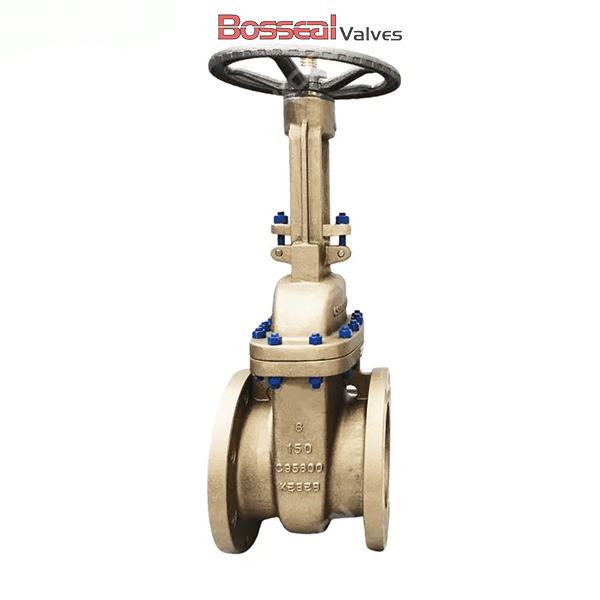

API 600 Aluminum Bronze Gate Valves, 20 Inch, CL300, OS&Y

Name: API 600 Aluminum Bronze Gate Valves, 20 Inch, CL300, OS&Y
SKU: gtv-187304033
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GTV-187304033

As a leading manufacturer of aluminum bronze gate valves, we offer high-performance valves designed to API 600 standards. This 20-inch (DN500) gate valve features a robust body and trim made from ASTM B148 C95800 aluminum bronze, providing excellent resistance to corrosion and seawater environments. It comes with an OS&Y (Outside Screw and Yoke) configuration and a flexible wedge for reliable sealing and thermal expansion tolerance. Rated for Class 300 LB, the valve is available with flat face (FF) or raised face (RF) flanged ends, ensuring secure installation and dependable service in demanding conditions.

Request a quote

Tags:

API 600 Gate Valve

Aluminum bronze Gate Valve

ASTM B148 C95800 Gate Valve

Detail Information

Valve Description:
187304033 Aluminum Bronze Gate Valve.
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 20 Inch, DN500
Nominal Class: Class 300 LB
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Al-bronze
Normal Diameter: 2-64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

Next: Aluminum Bronze Gate Valves, API 600, 24 Inches, 300 LB, FF

Previous: Non-rising Stem Gate Valves, API 600, Al-bronze, 18 IN, PSB

Similar Products

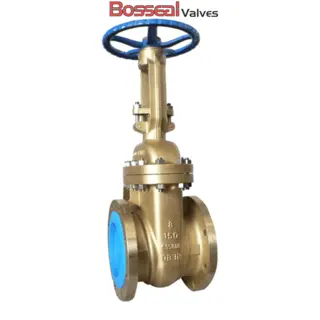

Aluminum Bronze Gate Valves, API 600, 24 Inches, 300 LB, FF

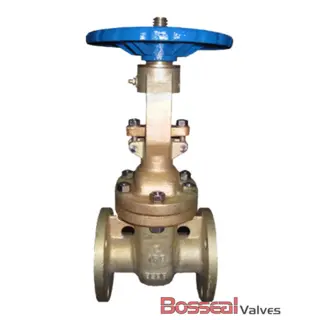

API 600 Bolted Bonnet Gate Valve, Al-Bronze, 4 Inch, CL300

Class 150 LB Gate Valve, API 600, Aluminum Bronze, 20 Inch

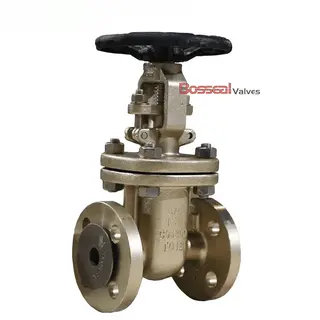

Flexible Wedge Gate Valves, API 600, OS&Y, 48 Inches, FF
