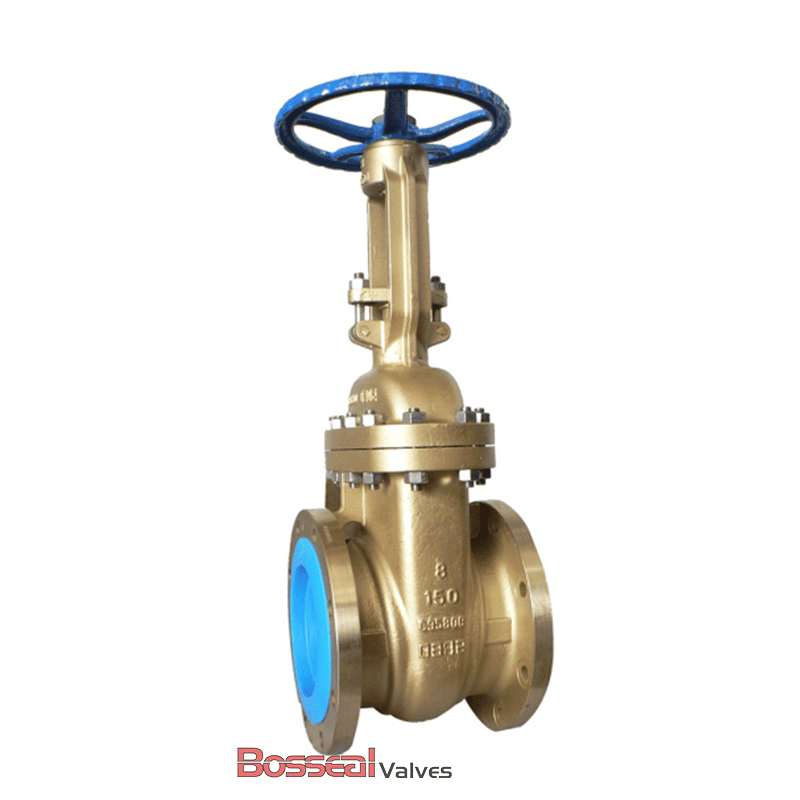

API 600 Gate Valve, Al-bronze, C95800, 26 IN, CL300 LB, RF

Name: API 600 Gate Valve, Al-bronze, C95800, 26 IN, CL300 LB, RF
SKU: gtv-187304035
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GTV-187304035

As a trusted aluminum bronze gate valve supplier in China, we offer high-quality valves manufactured to API 600 standards. Our 26-inch (DN650) gate valves are crafted from durable ASTM B148 C95800 aluminum bronze and are rated for Class 300 LB. Designed with a bolted bonnet and outside screw and yoke (OS&Y) configuration, these valves feature RF flanged ends for secure pipeline integration. Available with either a handwheel or gear operator, they ensure reliable performance in demanding industrial applications. Ideal for seawater, chemical, and marine environments.

Request a quote

Tags:

API 600 Gate Valve

Al-bronze Gate Valve

ASTM B148 C95800 Gate Valve

Detail Information

Valve Description:
187304035 Aluminum Bronze Gate Valve, Flexible Wedge.
Design Standard: API 600
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 26 Inch, DN650
Nominal Class: Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
