Key Specifications / Features
Model No. : 1811132
Explore our range of high-quality API 6D forged ball valves, including 42-inch, 600 LB, DN1050, and PN100 specifications, compliant with BS 5351, ASTM A105N, and ASTM A350 LF2 standards. These 3-piece valves feature DEVLON seats, trunnion mounting, and RF flanged connections. Trust in our expertise as a reliable supplier of precision-engineered valves for your industrial needs.
Categories
Trunnion Mounted Ball Valve
Tags:
API 6D Ball Valve
, 42 Inch Ball Valve
, Class 600 LB Ball Valve
.

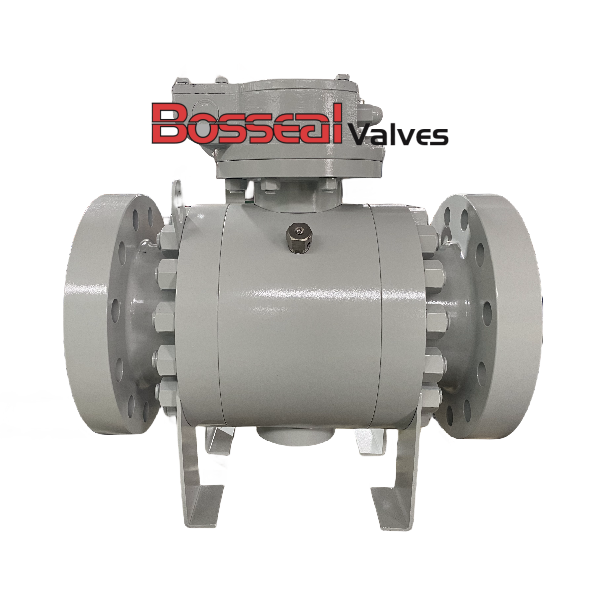

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 42 INCH, 600 LB, RF, DEVLON seat, Gear Operation
Valve Description:
1811132 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 42 Inch
Nominal class: 600 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
