Key Specifications / Features
Model No. : 1.5G15NA10512
Get high-quality ASTM A105 body-forged gate valves from a trusted provider. Our gate valves adhere to API 602 and ASME B16.34 standards, ensuring reliability and durability. With a 1-1/2 inch size and a class 1500 LB rating, these gate valves are designed to handle demanding applications. They feature DN40 and PN250 specifications, making them suitable for various industrial settings. The NPT threaded connection allows for easy installation, while the handwheel operation ensures convenient control. The bolted bonnet adds an extra layer of security. Choose our ASTM A105 body-forged gate valves for superior performance and efficiency.
Categories
Gate Valves
Tags:
NPT Gate Valve
, Forged Steel Gate Valve
, Class 1500 LB Gate Valve
.

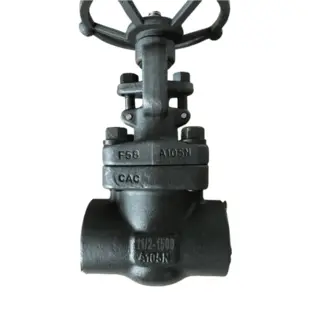

A105 Body 316 Trim Forged Gate Valve, API 602, 1-1/2 INCH, 1500 LB, NPT End, Handwheel
Valve Description:
1851017 API 602 Forged Gate Valve 1.5G15NA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1-1/2 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: NPT Threaded
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: SS316+STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
