Key Specifications / Features
Model No. : 1BB3JF304
Discover our high-quality Forged Steel Floating Ball Valve designed in accordance with API 608 standards. This valve features a robust Forged F304 Body and is specifically engineered for 1 inch piping systems operating at 300 LB pressure. With a reliable RTJ connection and durable SS 304 Trim, our valve ensures optimal performance. The Soft Seat provides a secure seal, while the Lever Operation offers easy and efficient control. Explore our range of standardized valves for various industrial applications.
Categories
Floating Ball Valve
Tags:
ASTM A182 F304 Ball Valve
, API 608 Ball Valve
, 1 Inch Ball Valve
.
Forged Steel Floating Ball Valve, API 608, Forged F304 Body, 1 inch, 300 LB, RTJ, SS 304 Trim, Soft Seat, Lever Operation
Valve Description:
1812007 Floating Ball Valve 1BB3JF304
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 1 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Lever Lockable
Body Material: ASTM A182 F304
Trim Material: ASTM A182 F304, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
Next: ASTM A105 Floating Ball Valve, ISO 17292, 1/2IN, 800 LB, NPT

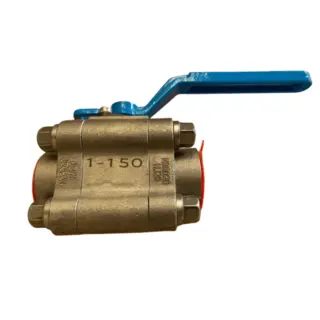

Previous: UNS N08020 Alloy 20 Floating Ball Valve, 1 Inch, 150 LB, SW
