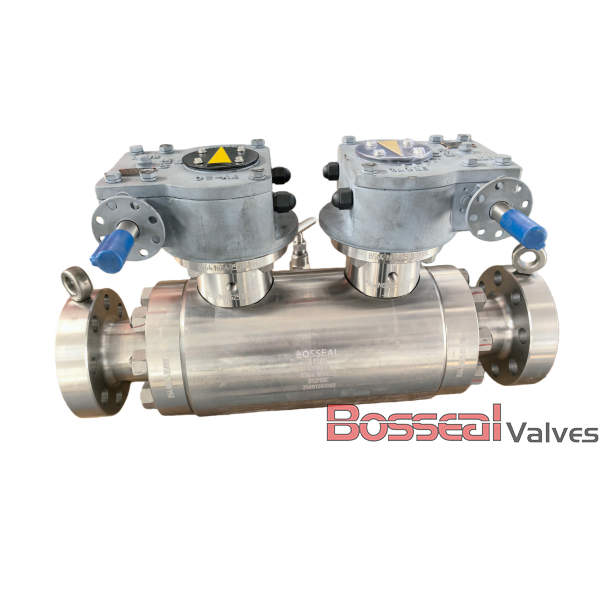

BS 5351 DBB Ball Valve, DN700, PN150, Full Welded, RTJ Flanged

Key Specifications / Features

Model No. : 181302078

This DBB Trunnion Ball Valve features a BS 5351 design with a full welded construction, crafted from stainless steel ASTM A182 F55 for superior strength and corrosion resistance. With a size of DN700 (700 mm) and a PN150 pressure rating, this valve ensures reliable performance in demanding applications. The valve is equipped with RTJ flanged ends for secure connections and a gear operation for smooth control and ease of use. As a leading DBB Trunnion Ball Valve Factory in China, we provide high-quality solutions for fluid control, engineered to meet the most rigorous industry standards.


Detail Information

Valve Description:
181302078 DBB Ball Valves, Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 28 Inches, DN700, 700 mm
Pressure: Class 900 LB, PN150
Structure: Full Welded
Body Material: ASTM A182 F55, ASTM A182 F51, ASTM A182 F304, ASTM A105N, Inconel 625, ASTM A182 F53, F316, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
End Connection: RTJ Flanged
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
Bore Type: Full Bore or Reduced Bore
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
