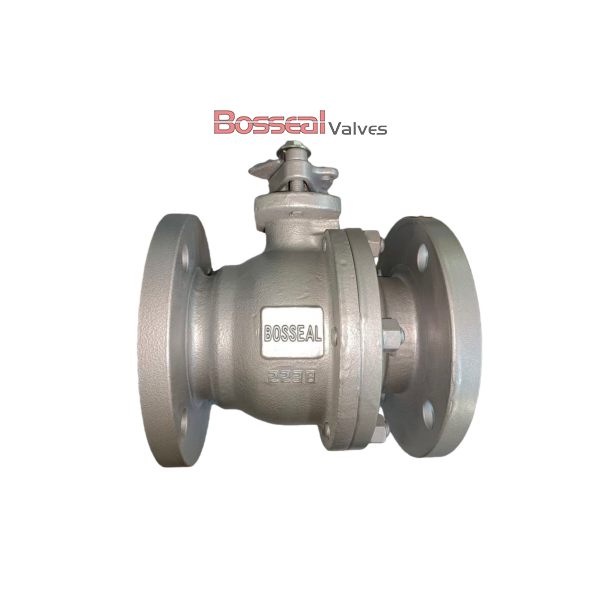

ASTM A216 WCC Floating Ball Valve, API 608, 3 Inch, 2-Piece

Key Specifications / Features

Model No. : 181203006

This 3-inch (DN80) soft-seated floating ball valve is engineered for reliable sealing and long-lasting performance. Constructed with a robust ASTM A216 WCC body and F316 trim, it offers excellent corrosion resistance and durability in demanding industrial environments. Designed to meet API 608 and API 6D standards, the valve is rated at Class 150 LB and features RF flanged ends for secure pipeline connections. Its soft seat ensures tight shutoff and minimal leakage. As a leading bolted bonnet floating ball valve supplier, we deliver high-quality valves tailored for precise flow control, operational reliability, and superior service life.


Detail Information

Valve Description:
181203006 Floating Ball Valve
Design Standard: ISO 17292, API 608, API 6D
Structure: 2pcs body, Side Entry, Bolted Bonnet, Soft Seat
Sizes: 3 Inches, DN80, 80 mm
Pressure Rating: Class 150 LB, PN20
Bore Type: Full Bore or Reduced Bore
End Connection: RF, RTJ
Operation: Lever
Body Material: ASTM A216 WCB, ASTM A105N or A350 LF2 or A182 F316, ASTM A216 WCC, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A995 4A, ASTM A995 5A, ASTM A995 6A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Anti-static, Fire Safe, Anti-Blowout Stem

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 6 Inch (DN15 – DN150)
Pressure range: 150 - 300 LB
End connection: Flanged
Working temperature: -26°C - +210°C
Operation: Manual(lever), Pneumatic Actuator
