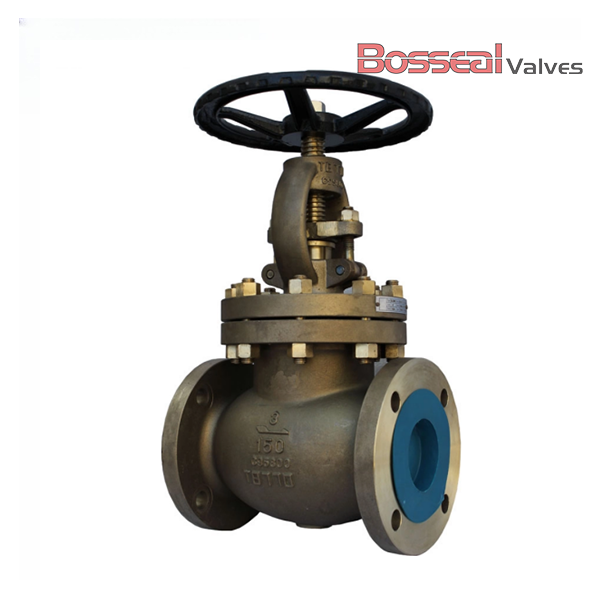

ASTM B148 C95800 Globe Valve, API 623, Al-bronze, 4 IN, CL150

Key Specifications / Features

Model No. : GLV-187305004

We are a reliable aluminum bronze globe valve provider in China, offering high-quality valves designed to API 623 standards. This 4-inch, Class 150 LB globe valve features a robust body and trim made from corrosion-resistant ASTM B148 C95800 aluminum bronze, making it ideal for demanding marine and industrial applications. It is equipped with a bolted bonnet and OS&Y (outside screw and yoke) design for enhanced durability and ease of maintenance. Available with handwheel or gear operation, this valve ensures precise flow control and long-lasting performance in harsh environments.

Detail Information

Valve Description:
187305004 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Body Material: ASTM B148 C95800
Nominal Size: 4 Inch, DN100
Nominal Class: 150 LB
Structure: Bolted Bonnet/Pressure Seal Bonnet
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM B148 C95800
Bore Type: Standard Bore
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
