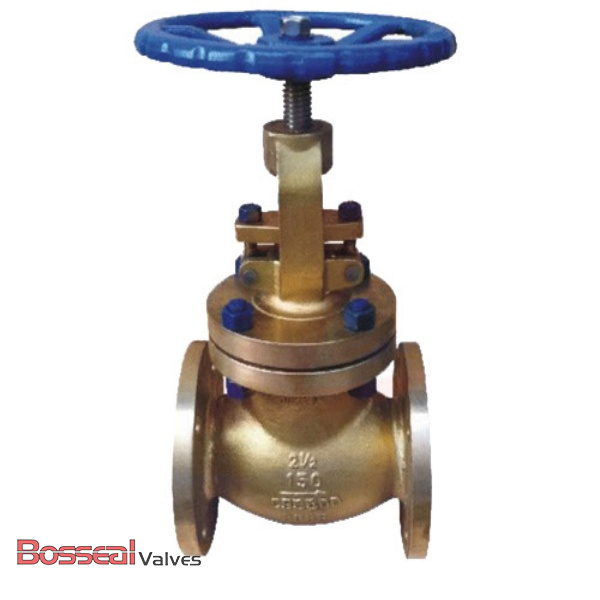

BS 1873 Aluminium Bronze Globe Valve, C95800, 36 Inch, CL150

Name: BS 1873 Aluminium Bronze Globe Valve, C95800, 36 Inch, CL150
SKU: glv-187305018
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305018

We are a trusted provider of aluminum bronze globe valves, offering high-performance solutions designed to BS 1873 standards. Our 36-inch globe valves are made with ASTM B148 C95800 body and trim, delivering superior resistance to corrosion in seawater and aggressive environments. Featuring a Class 150 LB pressure rating, RF flanged ends, and an OS&Y design for safe and visible operation, these valves also include a screwed-in back seat for added reliability. Engineered for durability and smooth flow regulation, they are ideal for marine, offshore, and industrial applications requiring long-lasting and dependable valve performance.

Request a quote

Tags:

BS 1873 Globe Valve

Aluminum bronze Globe Valve

ASTM B148 C95800 Globe Valve

Detail Information

Valve Description:
187305018 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 36 Inch
Nominal Class: 150 LB
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2-24 Inch (DN50 - DN600)
Pressure Range: 150-300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
