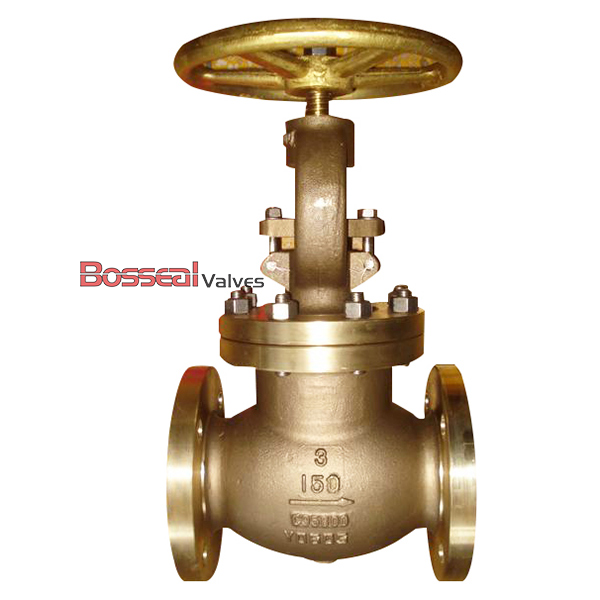

API 623 Flanged Globe Valves, Al-bronze, 40 IN, Bolted Bonnet

Name: API 623 Flanged Globe Valves, Al-bronze, 40 IN, Bolted Bonnet
SKU: glv-187305019
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305019

We are a specialized manufacturer of flanged globe valves, designed to API 623 and BS 1873 standards for reliable performance in demanding environments. Our 40-inch globe valves feature a corrosion-resistant aluminum bronze ASTM B148 C95800 body and trim, making them ideal for seawater and aggressive media applications. Built with a robust bolted bonnet for easy maintenance and long-term durability, these Class 150 LB valves come with FF or RF flanged ends to suit various piping systems. Engineered for smooth operation and dependable flow control in marine and industrial settings.

Request a quote

Tags:

API 623 Globe Valve

Flanged Globe Valve

Al-bronze Globe Valve

Detail Information

Valve Description:
187305019 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Nominal Size: 40 Inch
Nominal Class: 150 LB
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Al-bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor

Next: Al-bronze Globe Valve, BS 1873, API 623, 42 IN, CL150, RF

Previous: BS 1873 Aluminium Bronze Globe Valve, C95800, 36 Inch, CL150

Similar Products

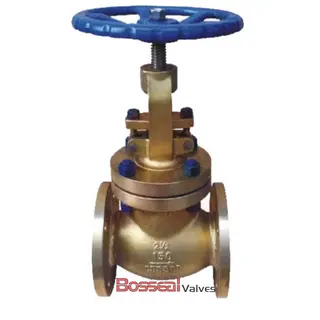

Al-bronze Flanged Globe Valve, B148 C95800, 24 IN, FF, OS&Y
