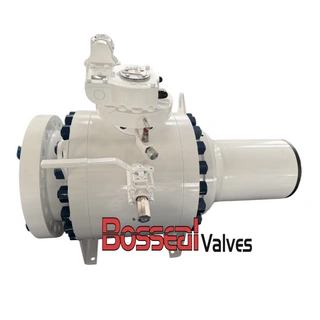

Forged Carbon Steel Trunnion Ball Valve, 12 Inch, 600 LB

Key Specifications / Features

Model No. : 181101013

Worm gear trunnion ball valve built with ASTM A105 forged carbon steel and robust epoxy coating. This Class 600 full-bore DBB valve in NPS12 DN300 adopts a heavy three-piece bolt-up forged body for pipeline isolation service. The worm gear operator reduces manual torque to facilitate on-site operation. It is equipped with body cavity relief, seat sealant injection port, and body cavity drain for cavity venting and draining. Developed for oil and gas transmission pipelines, it provides bubble-tight shutoff and dependable long-run performance under medium- and high-pressure operating environments.

Detail Information

Valve designation: Trunnion ball valve
Body construction: Three-piece forged bolt-up design
Flow passage: Full bore
Seating concept: Double block and bleed (DBB)
Design & manufacturing codes: API 6D, ASME B16.34
Operation: Worm gear operated
Pressure class: Class 600 LB
Nominal size: NPS12 (DN300)
Body material: ASTM A105 forged carbon steel
End connection: Flanged end
Flange dimensions: ASME B16.5
Face-to-face dimension: Compliant with API 6D standards
Body material options: ASTM A105, ASTM A105N, ASTM A182 F304, ASTM A182 F316L
Ball material selection: ASTM A182 F304, ASTM A182 F316, hard facing overlay as option
Seat material selection: PTFE, RPTFE, PEEK, Devlon, metal-to-metal seat
Stem material: ASTM A182 F316
Fasteners: ASTM A193 B7 alloy studs and ASTM A194 2H heavy duty nuts
Temperature range: -29°C to +180°C, cryogenic configuration available on request
Suitable media: Natural gas, crude oil, refined fuels, petrochemical process fluids
Testing requirement: Full inspection and hydrostatic test following API 6D
Surface finish: Epoxy protective coating for carbon steel; raw machined surface for stainless steel
Feature: Body cavity relief, seat sealant injection port, body cavity drain
