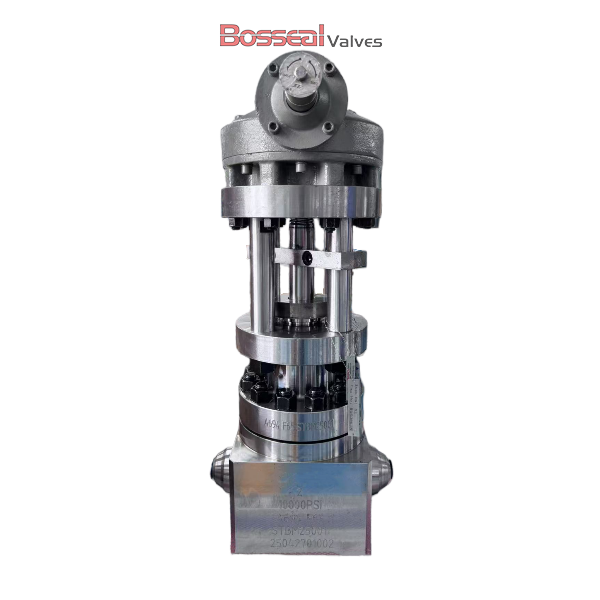

Pressure Seal Bonnet Globe Valve, A694 F60/F65, 2-9/16 Inch

Key Specifications / Features

Model No. : GLV-183103003

As a leading pressure seal bonnet globe valve factory in China, we manufacture valves designed to meet API 6A standards with superior reliability and durability. Constructed with ASTM A694 F60, F65, or Inconel body materials, these valves ensure excellent strength and resistance to harsh service conditions. The trims are made from 17-4PH stainless steel or Inconel for enhanced wear resistance, while TCC and STL seating options provide secure sealing. Available in 2-9/16 inch size, rated to 5000 PSI, with RTJ or butt-weld ends for versatile installation.


Detail Information

Valve Description:
183103003 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
