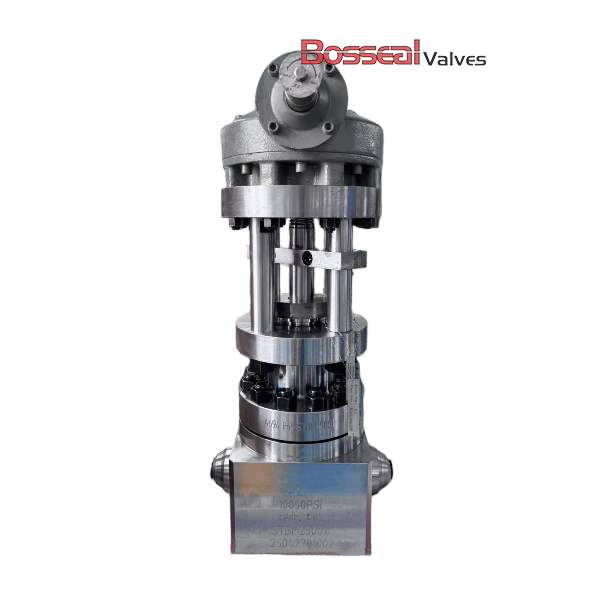

Pressure Seal Bonnet Globe Valve, API 6A, F60/F65, 7-1/16 IN

Key Specifications / Features

Model No. : GLV-183103035

As an API 6A globe valve supplier in China, we provide high-performance valves designed for demanding oil and gas applications. This globe valve features a robust pressure seal bonnet and a durable ASTM A694 F60/F65 body for enhanced reliability under extreme conditions. The trim is available in 4140, F51, 17-4PH, or Inconel, ensuring superior resistance to wear and corrosion. With a size of 7-1/16 inch and a pressure rating of 10,000 PSI, it is built to deliver safe, precise flow control. Gear operation ensures smooth handling and long-lasting performance.


Detail Information

Valve Description:
183103035 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
