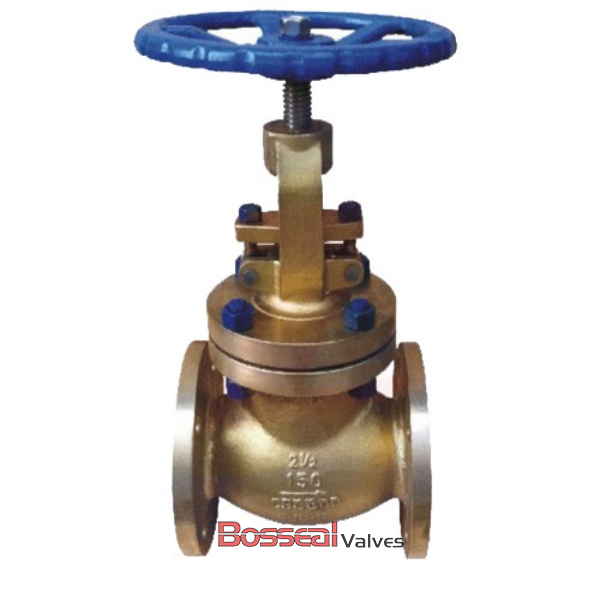

Al-bronze Flanged Globe Valve, B148 C95800, 24 IN, FF, OS&Y

Name: Al-bronze Flanged Globe Valve, B148 C95800, 24 IN, FF, OS&Y
SKU: glv-187305013
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305013

We are a professional flanged globe valve factory in China, producing high-quality valves designed to BS 1873 and API 623 standards. Our 24-inch globe valves are made with aluminum bronze ASTM B148 C95800 body and trim, offering exceptional corrosion resistance for marine and harsh industrial applications. With Class 150 LB pressure rating and FF/RF flanged ends, they provide versatile connection options. The OS&Y (Outside Screw and Yoke) design ensures safe and reliable operation. Engineered for durability and precision, our globe valves deliver long-lasting performance in corrosive and demanding service conditions.

Request a quote

Tags:

Al-bronze Globe Valve

Flanged Globe Valve

ASTM B148 C95800 Globe Valve

Detail Information

Valve Description:
187305013 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 24 Inch
Nominal Class: 150 LB
Test and Inspection: API 598
Operation: Handwheel/Gear
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Face to Face: ASME B16.10

Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
