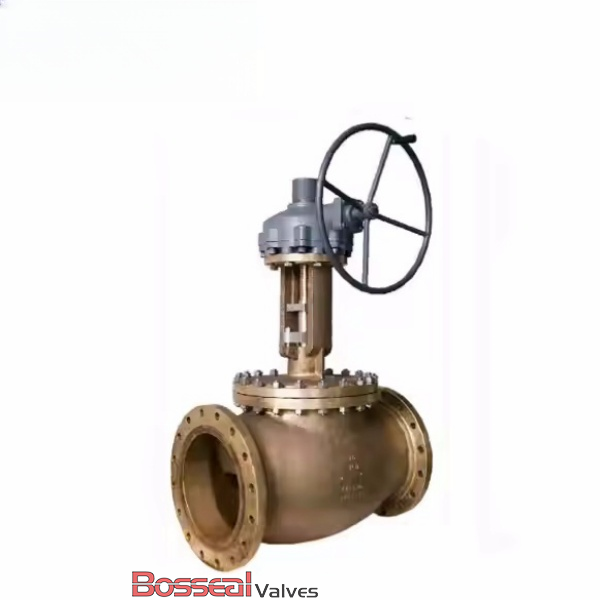

API 623 Globe Valve, Aluminum Bronze C95800, 18 IN, CL150 LB

Key Specifications / Features

Model No. : GLV-187305011

We are a trusted manufacturer of aluminum bronze globe valves in China, offering high-quality valves designed to API 623 and BS 1873 standards. Our globe valves are crafted from durable ASTM B148 C95800 aluminum bronze for both body and trim, ensuring excellent corrosion resistance and long service life. Featuring a bolted bonnet and OS&Y design for reliable operation, our 18-inch Class 150 LB globe valves are ideal for demanding industrial applications, especially in marine and corrosive environments. Precision-engineered and performance-tested for safety, reliability, and superior flow control.

Detail Information

Valve Description:
187305011 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 18 Inch
Nominal Class: Class 150 LB
Bore Type: Standard Bore
Test and Inspection: API 598
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
End Connection: FF or RF Flanged

Key Features: OS&Y design, screwed-in back seat, rising stem with non-rising handwheel, flexible wedge for tight sealing, low emission construction, and durable aluminum bronze material ideal for seawater service.

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor

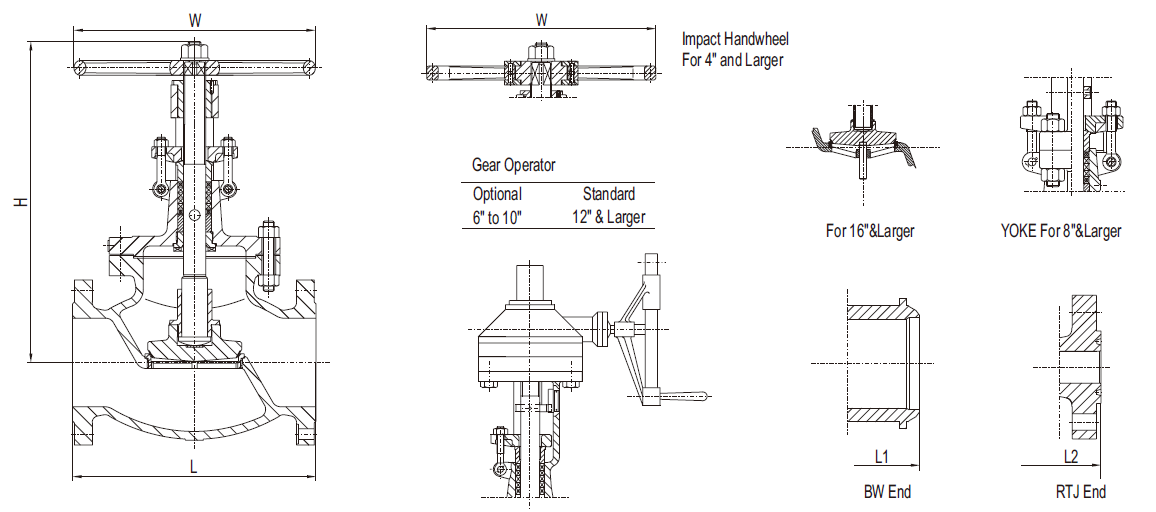

Drawing for Bolted Bonnet Globe Valve
