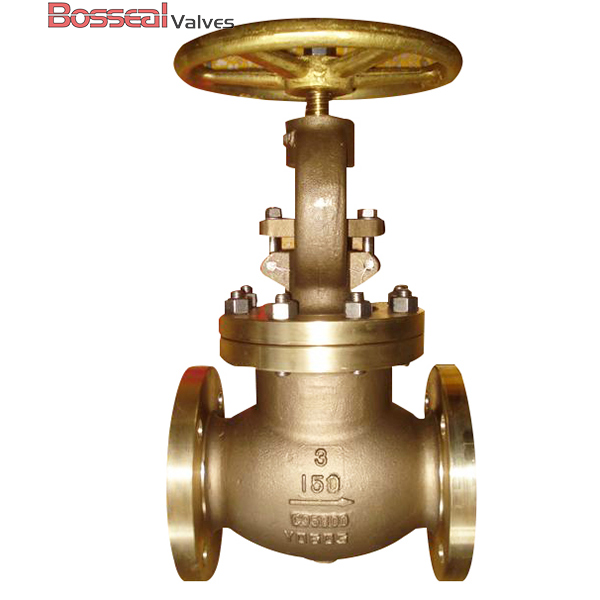

Bolted Bonnet Globe Valves, API 623, B148 C95800, 26 IN, RF

Name: Bolted Bonnet Globe Valves, API 623, B148 C95800, 26 IN, RF
SKU: glv-187305014
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : GLV-187305014

We are a trusted provider of bolted bonnet globe valves, offering premium products designed to API 623 and BS 1873 standards. Crafted from corrosion-resistant aluminum bronze ASTM B148 C95800, our 26-inch Class 150 LB globe valves are ideal for demanding marine and industrial environments. These valves feature RF flanged ends for secure, leak-free connections and are available with handwheel or gear operation for precise flow control. The robust bolted bonnet construction ensures durability and ease of maintenance, making our globe valves a reliable choice for long-term performance in corrosive service conditions.

Request a quote

Tags:

Bolted Bonnet Globe Valve

API 623 Globe Valve

ASTM B148 C95800 Globe Valve

Detail Information

Valve Description:
187305014 Aluminum Bronze Globe Valve
Design Standard: API 623, BS 1873
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 26 Inch, DN650
Nominal Class: 150 LB, PN16
Bore Type: Standard Bore
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key features include an OS&Y design for safe operation, screwed-in back seat, rising stem with non-rising handwheel for easy control, and a flexible wedge ensuring reliable sealing. The valve is engineered with a low emission design and constructed from corrosion-resistant aluminum bronze, making it ideal for demanding seawater service and harsh marine environments.

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2-24 Inch (DN50 - DN600)
Pressure Range: 150-300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
